1.8-3.5 mmPb>85% transmissionMax 2600x1300mmCut on request

Radiation Protection Materials

Ultra-thin, high-density special lead glass with high lead equivalent, imported lead acrylic and lead rubber. Used in viewing windows, doors, protection rooms, screens and protection engineering.

Features

Special lead glass rich in lead and barium for optimal protection; shields 100KV–300KV radiation with high lead equivalent
Neutral tint, excellent transmission: >85% for 5mm at 550nm
Max size 2600×1300mm, cut to customer requirements
Lead acrylic: dark amber transparent sheets for large-area shields; tough, easy to machine (cut, drill, grind, bond, laminate)

Get a Quote

Models

Model details per the latest brochure

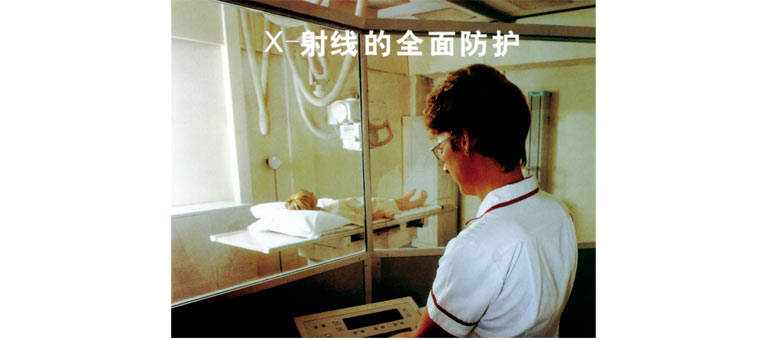

Special Lead GlassSpecial Lead Glass

Special lead glass; 1.8/2.4/3.0/3.5 mmPb; blocks 100-300KV; >85% transmission at 5mm; max 2600x1300mm

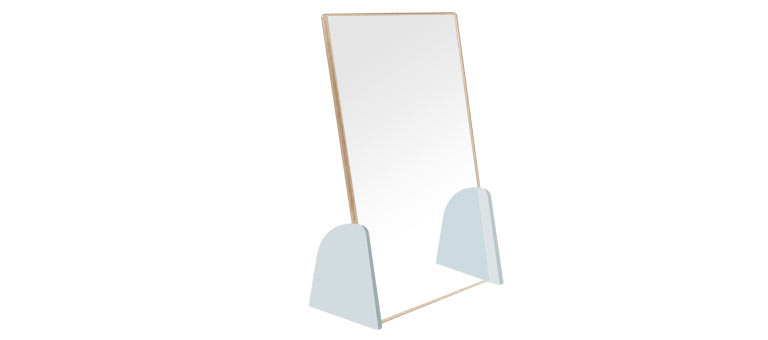

Lead Acrylic GlassLead Acrylic Glass

Lead acrylic; large transparent panels; tough and durable; machinable; max 1830x2440mm

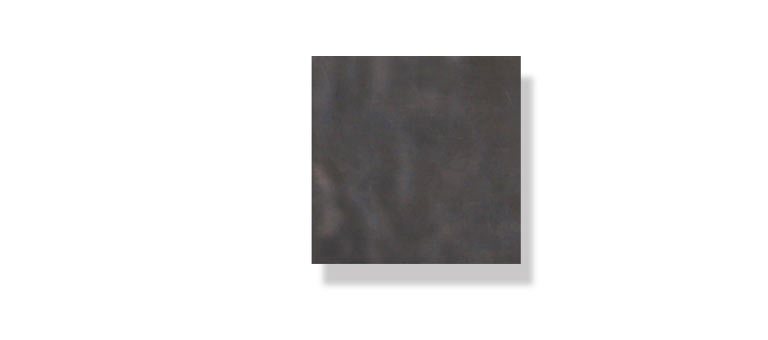

Lead RubberLead Rubber

Lead rubber sheet for protection engineering

Specifications

Item	Detail
Special Lead Glass Equivalent	1.8/2.4/3.0/3.5 mmPb
Protection Range	100KV–300KV radiation
Transmission	>85% for 5mm thickness at 550nm
Max Dimensions	Lead glass 2600×1300mm; lead acrylic 1830×2440mm, cut on request
