0.6 / 2.4 mmPbH 1800mmW 900-1200mmSpecial castors

Mobile X-Ray Barriers

Mobile X-ray barriers: half-transparent, curtained opening, fully transparent, adjustable multi-purpose, side-protection and multi-panel series. Imported lead acrylic or ultra-thin special lead glass with high transmission; special castors with brakes, silent, acid- and dust-proof.

Features

Imported lead acrylic or high-density ultra-thin special lead glass
High transmission, wide vision, reliable protection; light, mobile, durable and impact-resistant
Special castors: braked, load-bearing, silent, acid- and dust-proof
Multi-panel barriers fold 90–180° between panels for any space

Get a Quote

Models

Model details per the latest brochure

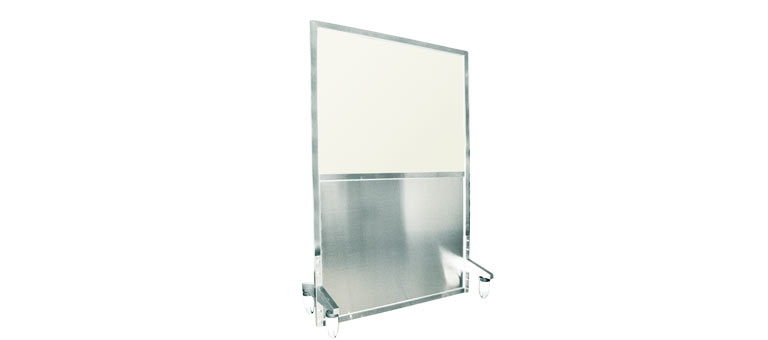

ST SeriesHalf-Transparent Barrier

Half-transparent mobile screen; H 1800mm, glass H 900mm, W 900/1000/1200mm

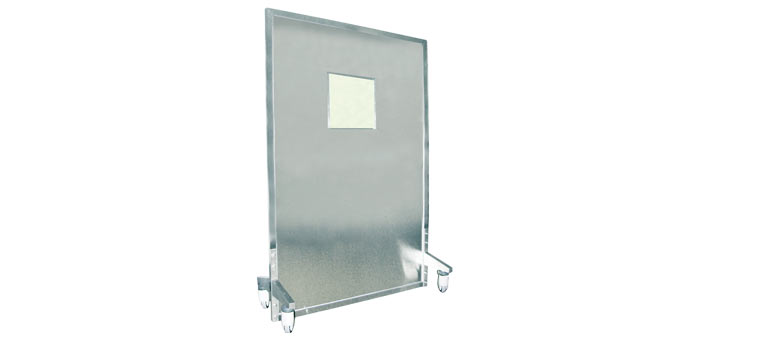

WS SeriesObservation Window Barrier

Mobile barrier with observation window for viewing the patient and operation area; braked castors, easy to move

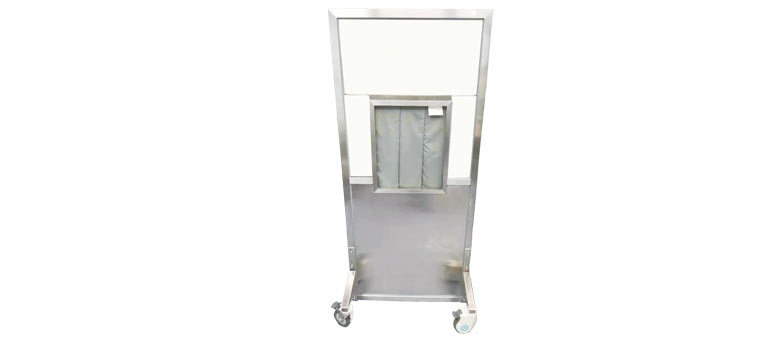

WP SeriesCurtained Opening Barrier

Curtain-opening mobile screen; 0.6 mmPb acrylic, W 900/1000/1200mm, opening 300x400mm

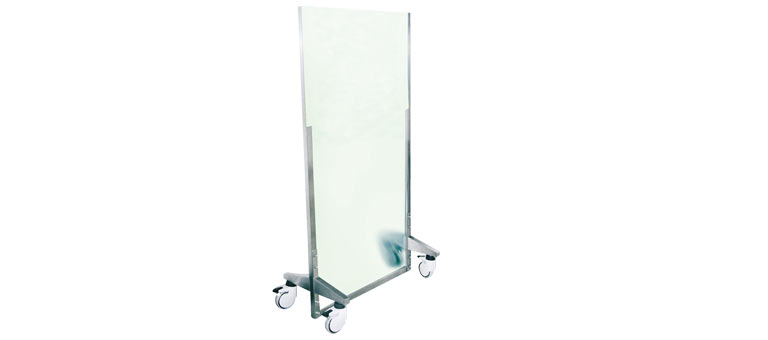

FT SeriesFully Transparent Barrier

Full-transparent mobile screen; H 1800mm, W 900/1000/1200mm, 0.6 mmPb

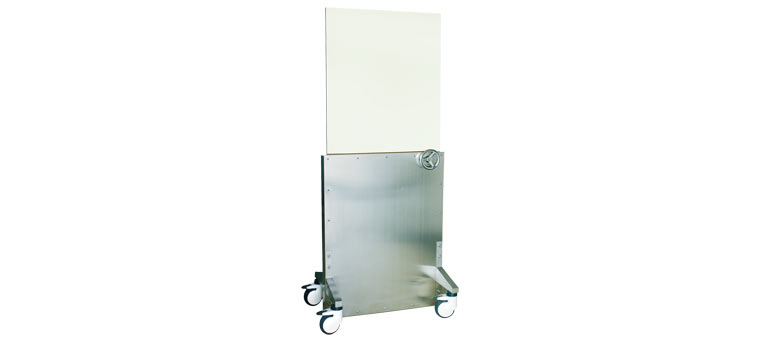

JS SeriesAdjustable Multi-Purpose Barrier

Height-adjustable multi-purpose screen; acrylic W 700mm, lead panel W 765mm, H 1020-1805mm

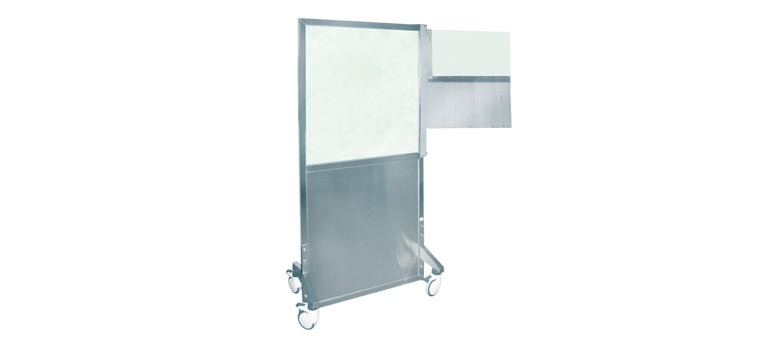

SPA SeriesSide-Protection with Curtain (SPA)

Side-guard screen with small curtain; main screen as ST, side moves & rotates, curtain 0.5 mmPb

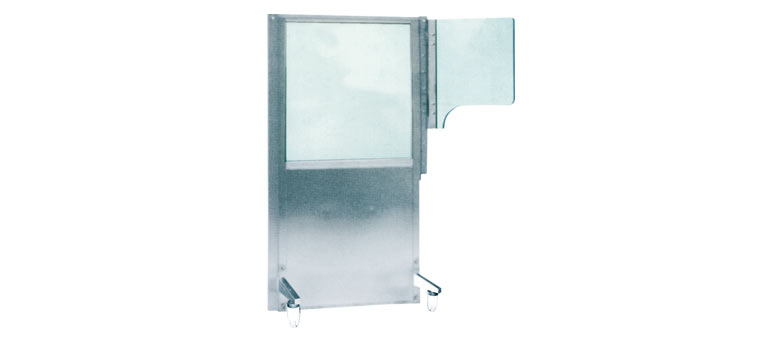

SPB SeriesStandard Side-Shield Barrier

Entire side shield in lead acrylic; H600×W400mm

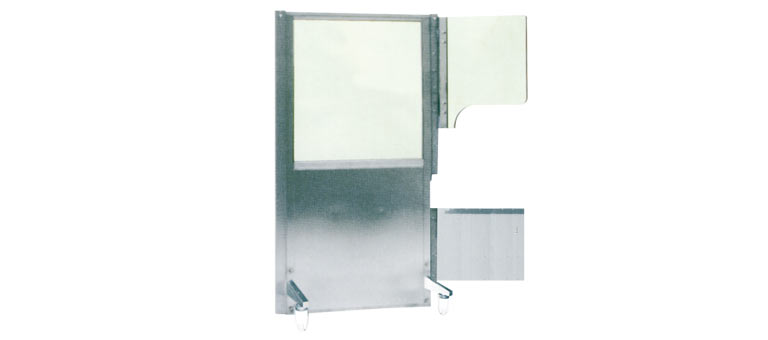

SPC SeriesBottom-Hanging Curtain Side-Shield Barrier

Side-guard mobile screen; main H700xW600, panel H400xW600, curtain H300xW600mm

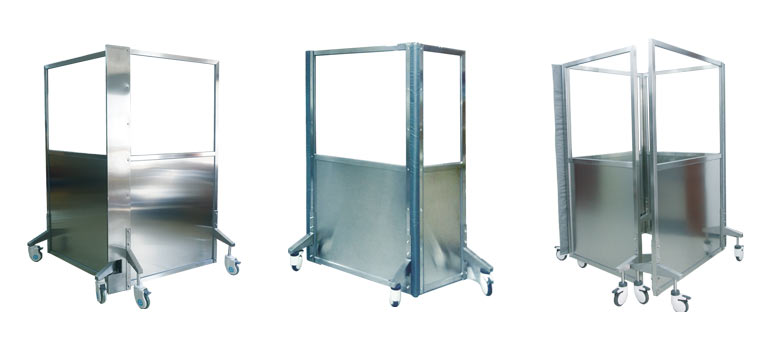

DS SeriesMulti-Panel Barrier (DS)

Multi-unit screen (double/triple/quad); H 1800mm, W 900/1000/1200mm, fold 90-180 degrees

Specifications

Item	Detail
Lead Equivalent (Transparent)	Lead acrylic 0.6 mmPb; special lead glass 2.4 mmPb
Lead Equivalent (Opaque)	Lead panel 1.0/2.0 mmPb
Lead Equivalent (Side)	Side transparent 0.6 mmPb; side curtain 0.5 mmPb
Glass Thickness	2.4mmPb lead glass 8–10mm; 0.6mmPb acrylic 12mm
Standard Sizes	Total H 1800mm; glass H 900mm; W 900/1000/1200mm
